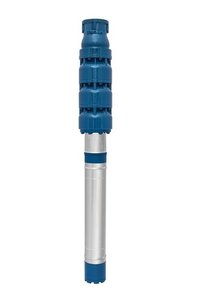

5 Inch Borewell Submersible Pump Set

5 Inch Borewell Submersible Pump Set
5 Inch Borewell Submersible Pump Set
Price And Quantity
  • 1
  • Unit/Units
    Product Description

    5 Inch Borewell Submersible Pumpsets

    SINGLA(5") Borewell Submersible Pumpsets are made of hard wearing parts which makes the pumpsets highly durable .Mix flow submersible pumpsets are fitted with stainless steel impellers which ensures better hydraulic efficiency.These pumpsets are fitted with water filled rewindable submersible motors with stators made of low watt loss laminations so as to ensure higher efficiency .Dynamically balanced rotors and specially designed thrust bearings enables vibration and noise free operation with minimum wear and tear. Pumps with 4" Submersible motor combination are also available on request.

    APPLICATIONS

    • Domestic and municipal water supply
    • Rural water supply
    • Irrigation
    • Sprinkler System
    • pressure boosting units and fire fighting system
    • Industrial and mining application
    • Ponds and Gardens

    SALIENT FEATURES

    • More longevity
    • High Operating efficiency
    • Designed for wide voltage fluctuation
    • Easy to dismantle and repair
    • Rigid construction
    • Highly durable
    • Water lubricated bearing

    PUMPED LIQUIDS

    Clean,thin non-aggressive,non-explosive, clear,cold,fresh water without abrasive

     Specifications

    Power range

    3.0 - 5.0 HP in 1Ph, 3.0 - 12.50 HP in 3Ph

    Version

    180 - 240V 1Ph 50HZ , 350 - 415V 3Ph 50HZ

    Speed

    2880 RPM

    Flow rate

    4.5-13 LPS

    Total Head Range

    19 - 90 meters

    Outlet Size in inches

    2½"  &  3"

    Degree of Protection

    IP 58

    Direction of Rotation

    CCW in 1Ph & CCW, CW in 3Ph

    Maximum outer diameter

    122 MM

    Type of duty

    S1 (Continuous)

    Maximum cooling flow

    1500 lbs



    MOC-MOTOR



     PART NAME MATERIAL
     Shaft Seal Nitrile Rubber
     Stator ShellStainless Steel
     Thrust PadGraphite Carbon
     Thrust BaseSS 420
     Motor Base/Upper Housing/Lower Housing Cast Iron
     ShaftSS 410

    MOC -PUMP

    PART NAME

    MATERIAL

    Impeller

    Poly carbonate / Stainless steel

    Diffuser

    Cast Iron (FG 200)

    Sleeve/Bush

    SS410 with chrome plated /NBR

    Suction

    Cast iron

    Pump shaft

    SS410

    Coupling

    SS410

    NRV Housing

    Cast Iron (FG 200)

    Pump Inlet Screen

    SS 202

    Cable Guard

    SS 202
